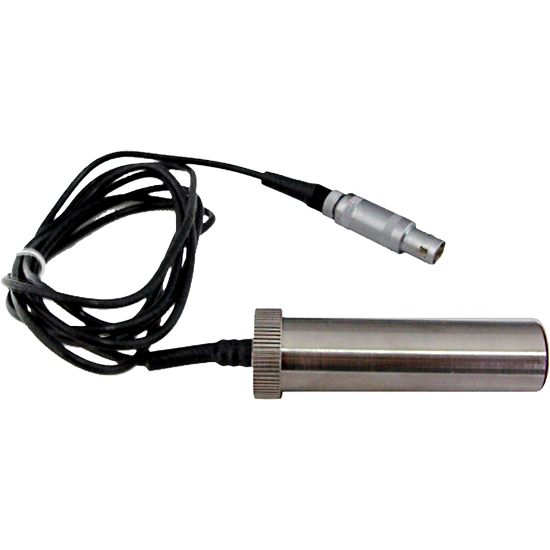

Ultrasonic Immersion Probe

Brand:

Mitech

Model:

Measuring range:

Resolution Accuracy:

Communication storage:

Working time:

Main unit weight:

Dimensions:

Package dimensions:

Total weight:

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

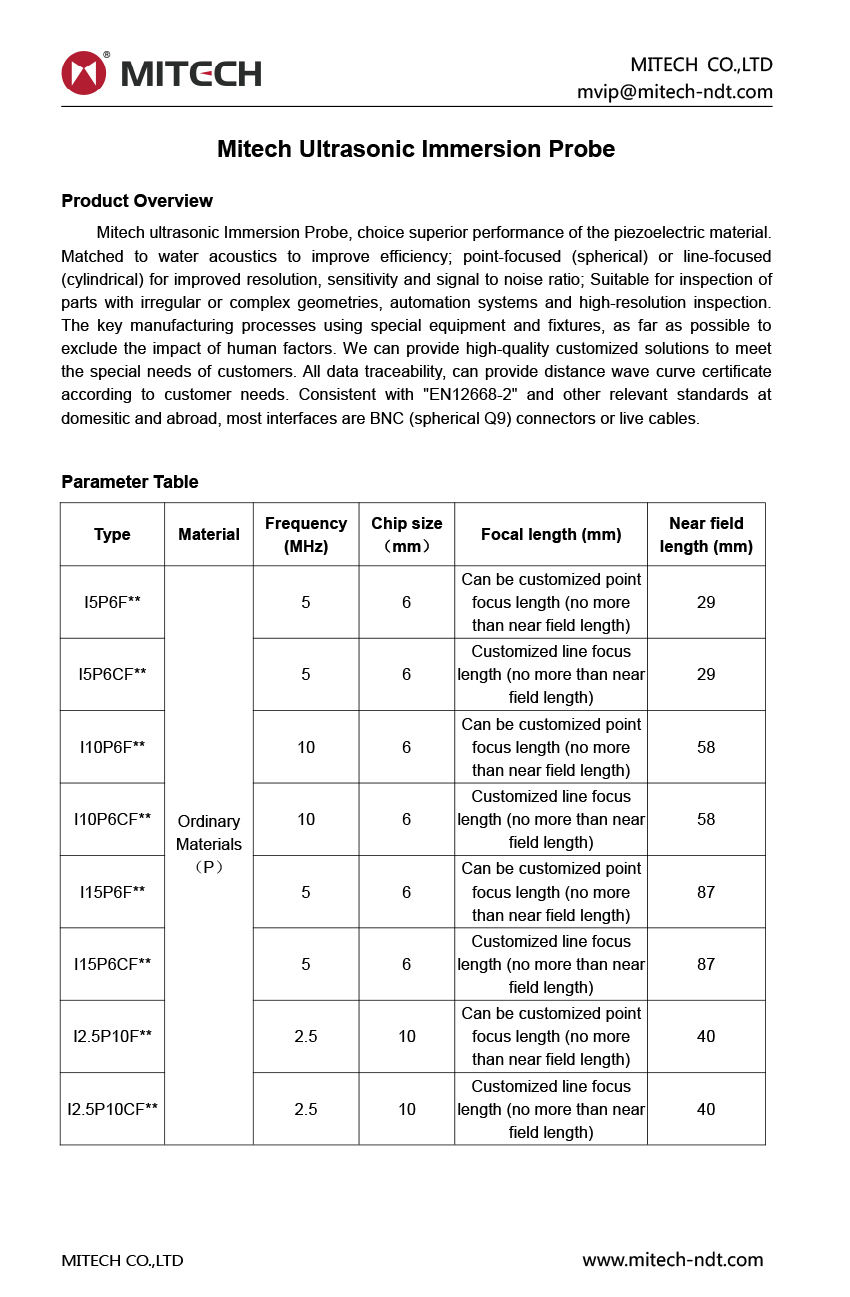

  • Product Overview

    Mitech ultrasonic Immersion Probe, choice superior performance of the piezoelectric material. Matched to water acoustics to improve efficiency; point-focused (spherical) or line-focused (cylindrical) for improved resolution, sensitivity and signal to noise ratio; Suitable for inspection of parts with irregular or complex geometries, automation systems and high-resolution inspection. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors. We can provide high-quality customized solutions to meet the special needs of customers. All data traceability, can provide distance wave curve certificate according to customer needs. Consistent with "EN12668-2" and other relevant standards at domesitic and abroad, most interfaces are BNC (spherical Q9) connectors or live cables.

    Function & application

     (1) With anomalous or complex geometrical shape components.

     (2) Automated system.

     (3) For application situation requires high resolution detection.

    Working Principle

    Working Conditions

    Instrument Features

    (1) Match hydroacoustics performance to raise efficiency.

    (2) Realize point focusing (spherical surface) or line focusing (cylinder), raise resolution, sensitivity and signal-to-noise ratio.

    (3) BNC(Q9) connector or with cable.

    Operating Method and Attentions

    Instrument Maintenance

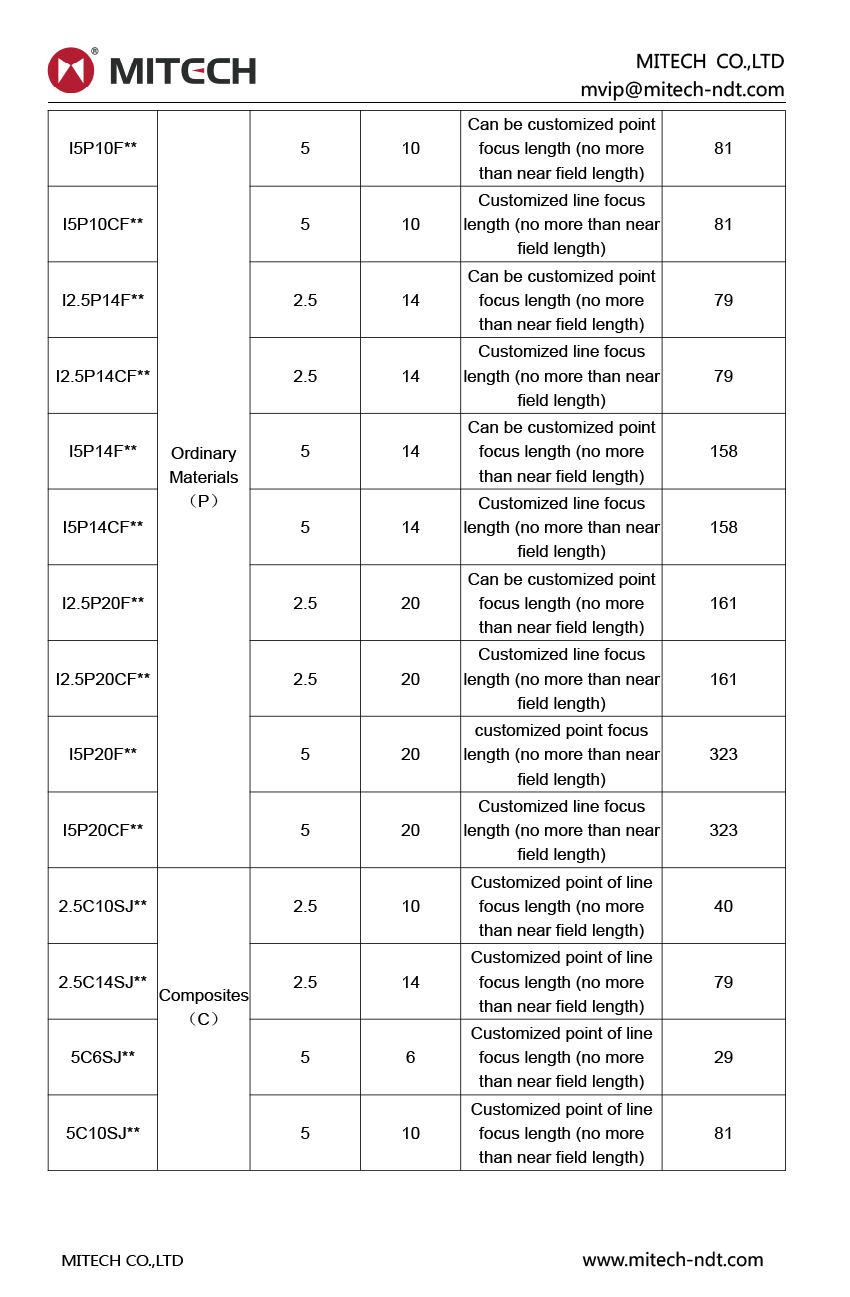

  • Frequency 2.5/5/10MHz
    Chip size 6/10/14/20mm
    Material Ordinary Materials or Composites
×
