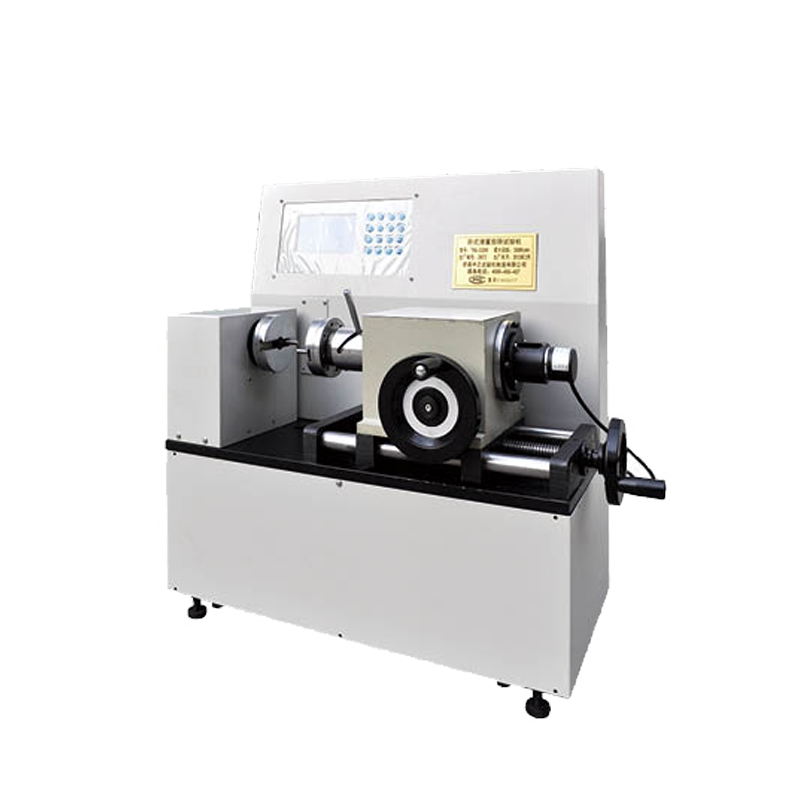

Mitech MTN-5000W Horizontal Manual Spring Torsion

Brand:

Mitech

Model:

Measuring range:

5000

Resolution Accuracy:

±1%

Communication storage:

Working time:

Main unit weight:

Dimensions:

Package dimensions:

Total weight:

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

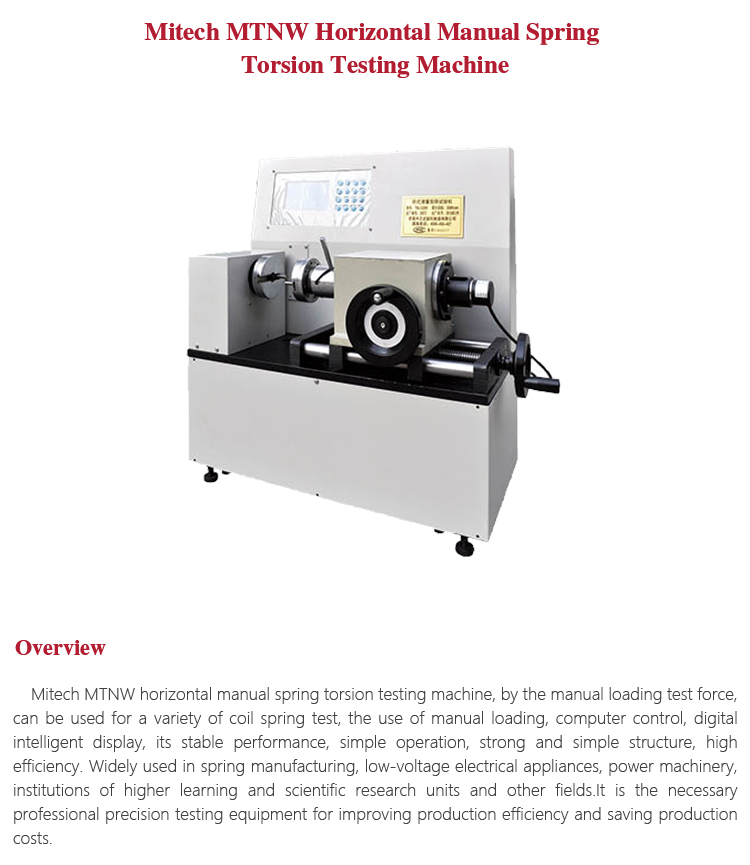

  • Product Overview

    Mitech MTNW horizontal manual spring torsion testing machine, by the manual loading test force, can be used for a variety of coil spring test, the use of manual loading, computer control, digital intelligent display, its stable performance, simple operation, strong and simple structure, high efficiency. Widely used in spring manufacturing, low-voltage electrical appliances, power machinery, institutions of higher learning and scientific research units and other fields.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

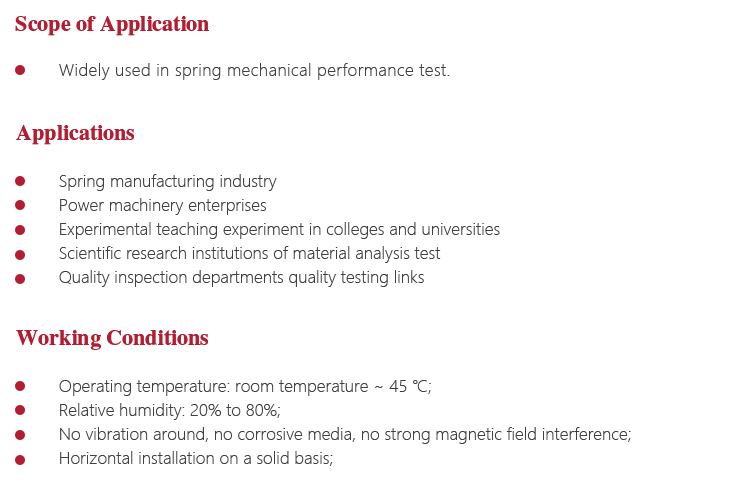

    Function & application

    Widely used in spring mechanical performance test.

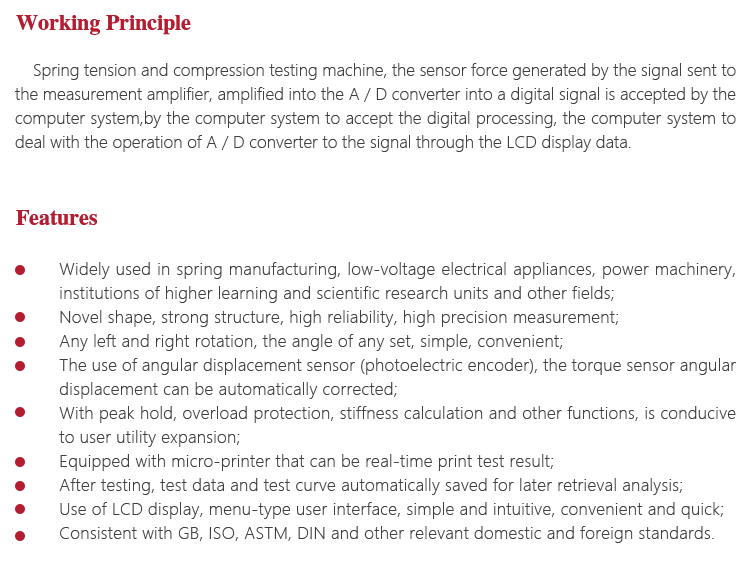

    Working Principle

    Spring tension and compression testing machine, the sensor force generated by the signal sent to the measurement amplifier, amplified into the A / D converter into a digital signal is accepted by the computer system,by the computer system to accept the digital processing, the computer system to deal with the operation of A / D converter to the signal through the LCD display data.

    Working Conditions

    Operating temperature: room temperature ~ 45 ;

    Relative humidity: 20% to 80%;

    No vibration around, no corrosive media, no strong magnetic field interference;

    Horizontal installation on a solid basis;

    Instrument Features

    Widely used in spring manufacturing, low-voltage electrical appliances, power machinery, institutions of higher learning and

    scientific research units and other fields;

    Novel shape, strong structure, high reliability, high precision measurement;

    Any left and right rotation, the angle of any set, simple, convenient;

    The use of angular displacement sensor (photoelectric encoder), the torque sensor angular displacement can be

    automatically corrected;

    With peak hold, overload protection, stiffness calculation and other functions, is conducive to user utility expansion;

    Equipped with micro-printer that can be real-time print test result;

    After testing, test data and test curve automatically saved for later retrieval analysis;

    Use of LCD display, menu-type user interface, simple and intuitive, convenient and quick;

    Consistent with GB, ISO, ASTM, DIN and other relevant domestic and foreign standards.

    Operating Method and Attentions

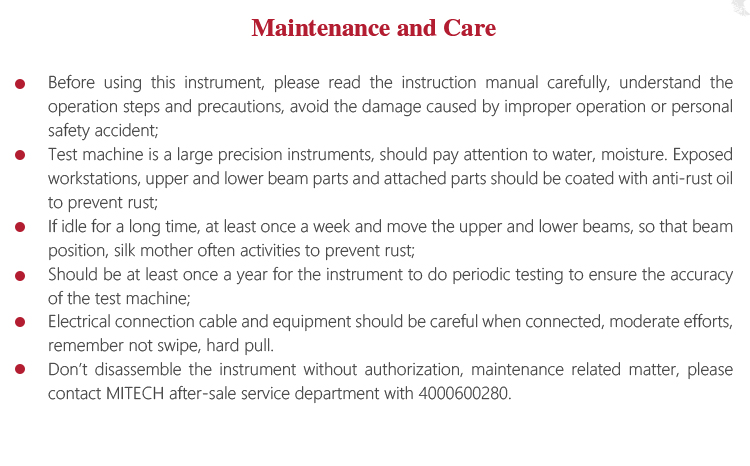

    Instrument Maintenance

    l Before using this instrument, please read the instruction manual carefully, understand the operation steps and precautions,

    avoid the damage caused by improper operation or personal safety accident;

    l Test machine is a large precision instruments, should pay attention to water, moisture. Exposed workstations, upper and

    lower beam parts and attached parts should be coated with anti-rust oil to prevent rust;

    l If idle for a long time, at least once a week and move the upper and lower beams, so that beam position, silk mother often

    activities to prevent rust;

    l Should be at least once a year for the instrument to do periodic testing to ensure the accuracy of the test machine;

    l Electrical connection cable and equipment should be careful when connected, moderate efforts, remember not swipe, hard

    pull.

    Don’t disassemble the instrument without authorization, maintenance related matter, please contact MITECH after-sale service department with 4000600280.

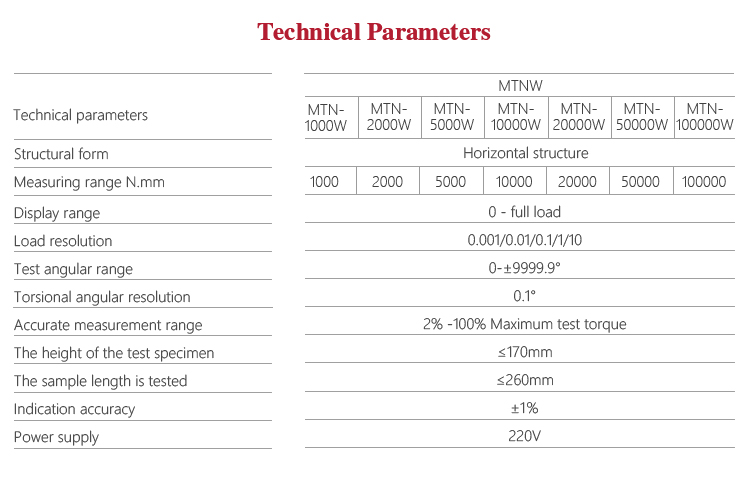

  • Structural form Horizontal structure
    Measuring range N.mm 5000
    Display range 0 - full load
    Load resolution 0.001/0.01/0.1/1/10
    Test angular range 0-±9999.9°
    Torsional angular resolution 0.1°
    Accurate measurement range 2% -100% Maximum test torque
    The height of the test specimen ≤170mm
    The sample length is tested ≤260mm
    Indication accuracy ±1%
    Power supply 220V
×
