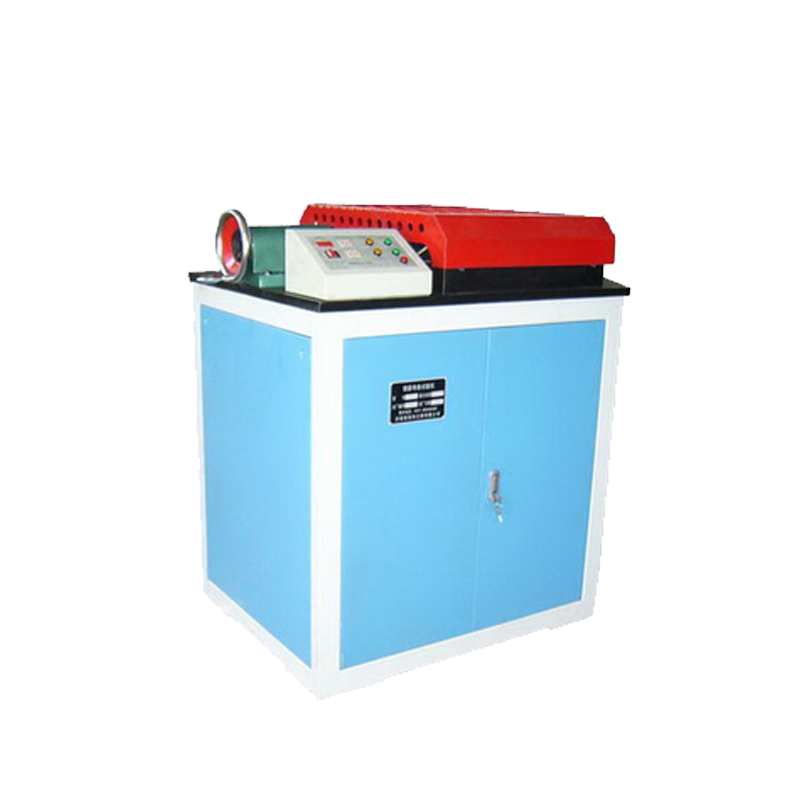

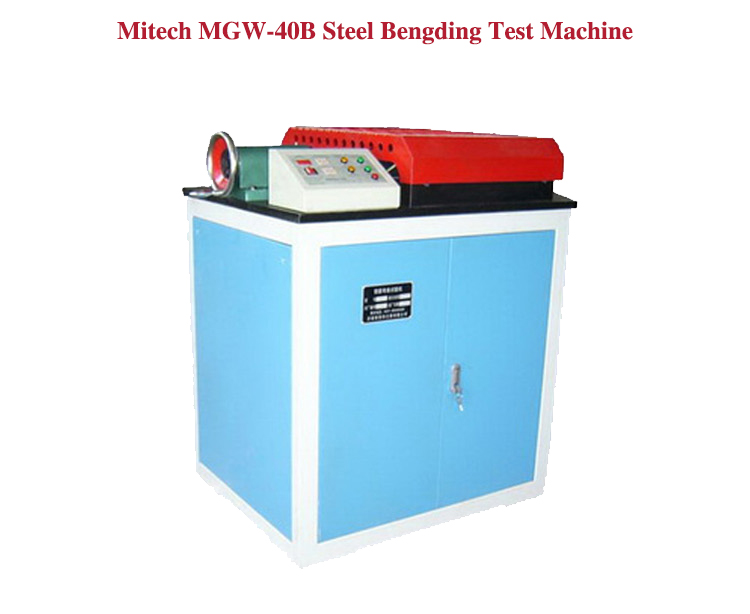

Mitech MGW-40B Steel Bending Test Machine

Brand:

Mitech

Model:

Measuring range:

Resolution Accuracy:

Communication storage:

Working time:

Main unit weight:

Dimensions:

1050*740*1170mm

Package dimensions:

Total weight:

700kg

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

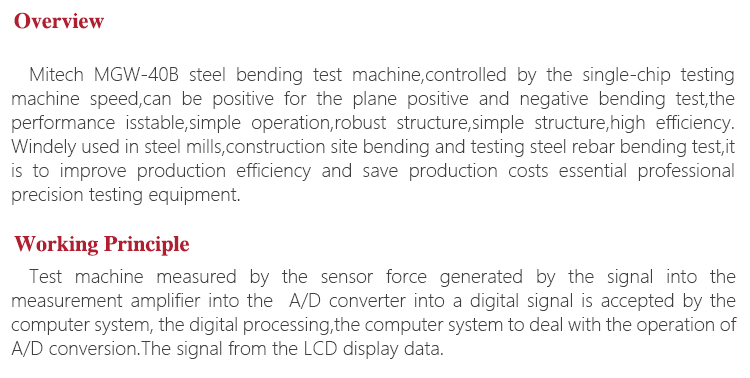

  • Product Overview

    Mitech MGW-40B steel bending test machine,controlled by the single-chip testing machine speed, can be positive for the plane positive and negative bending test, the performance is stable, simple operation, robust structure, simple structure, high efficiency. Widely used in steel mills, construction site bending and testing steel rebar bending test,it is to improve production efficiency and save production costs essential professional precision testing equipment.

    Function & application

    Widely used in steel mills, construction site bending and testing of steel rebar bending performance test.

    Working Principle


    Test machine measured by the sensor force generated by the signal into the measurement amplifier into the A / D converter into a digital signal is accepted by the computer system, the digital processing, the computer system to deal with the operation of A / D conversion The signal from the LCD display data

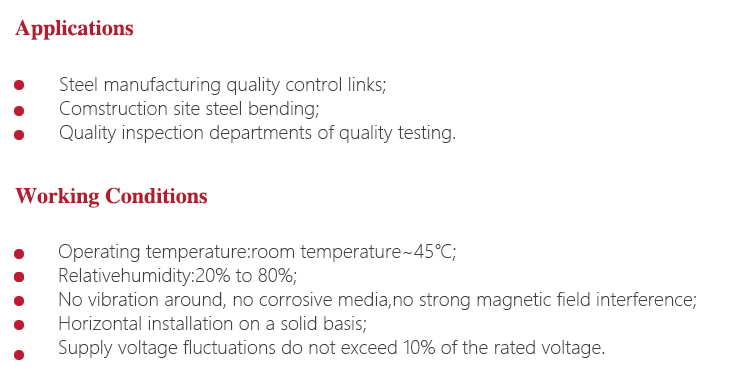

    Working Conditions

    Operating temperature: room temperature ~ 45 ;

    Relative humidity: 20% to 80%;

    No vibration around, no corrosive media, no strong magnetic field interference;

    Horizontal installation on a solid basis;

    Supply voltage fluctuations do not exceed 10% of the rated voltage.

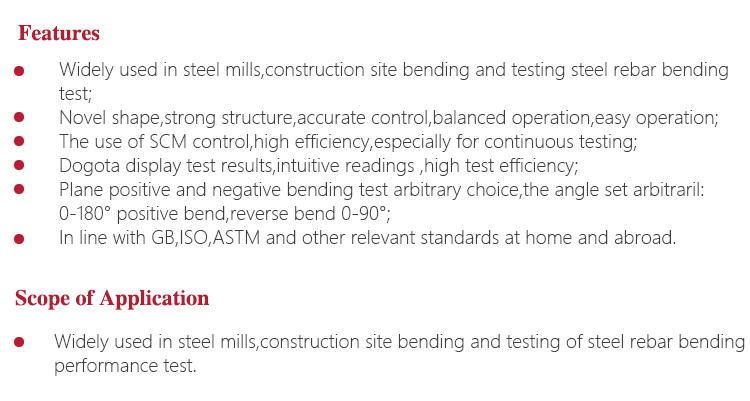

    Instrument Features

    Test machine measured by the sensor force generated by the signal into the measurement amplifier into the A / D converter into a digital signal is accepted by the computer system, the digital processing, the computer system to deal with the operation of A / D conversion The signal from the LCD display data

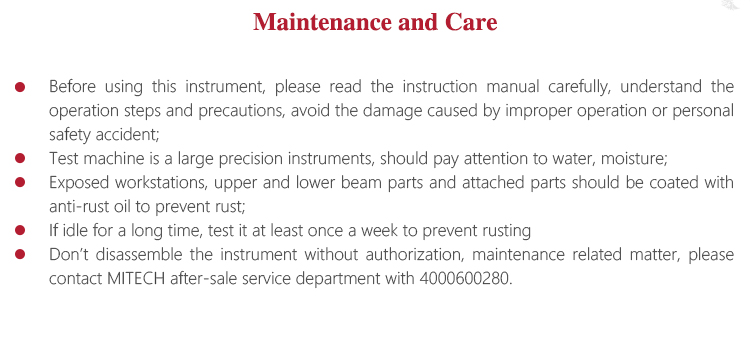

    Operating Method and Attentions

    l Before using this instrument, please read the instruction manual carefully, understand the operation steps and precautions, avoid the damage caused by improper operation or personal safety accident;

    l Test machine is a large precision instruments, should pay attention to water, moisture. Exposed workstations, upper and lower beam parts and attached parts should be coated with anti-rust oil to prevent rust;

    l If idle for a long time, test it at least once a week to prevent rusting

    l Don’t disassemble the instrument without authorization, maintenance related matter, please contact MITECH after-sale service department with 4000600280.

    Instrument Maintenance

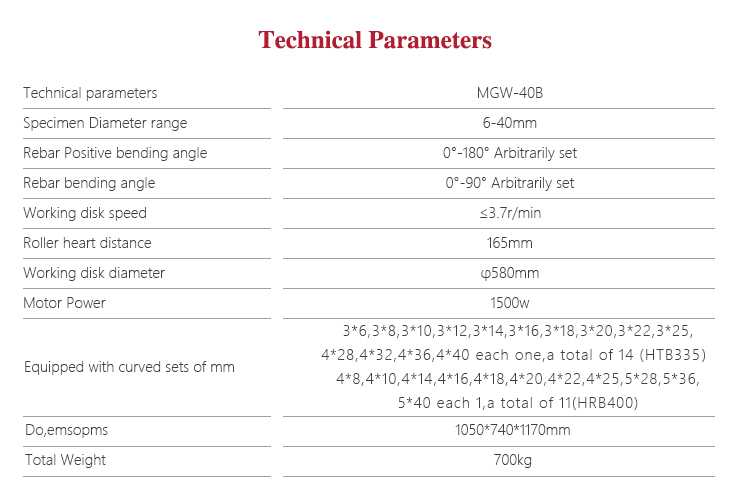

  • Specimen Diameter range 6-40mm
    Rebar Positive bending angle 0°-180°Arbitrarily set
    Rebar bending angle 0°-90° Arbitrarily set
    Working disk speed ≤ 3.7 r/min
    Roller heart distance 165mm
    Working disk diameter φ580mm
    Motor Power 1500W
    Equipped with curved sets of mm 3 * 6,3 * 8,3 * 10,3 * 12,3 * 14,3 * 16,3 * 18,3 * 20,3 * 22,3 * 25,4 * 28,4 * 32,4 * 36,4 * 40 each
    Dimensions 1050*740*1170mm
    Total Weight 700kg
×
