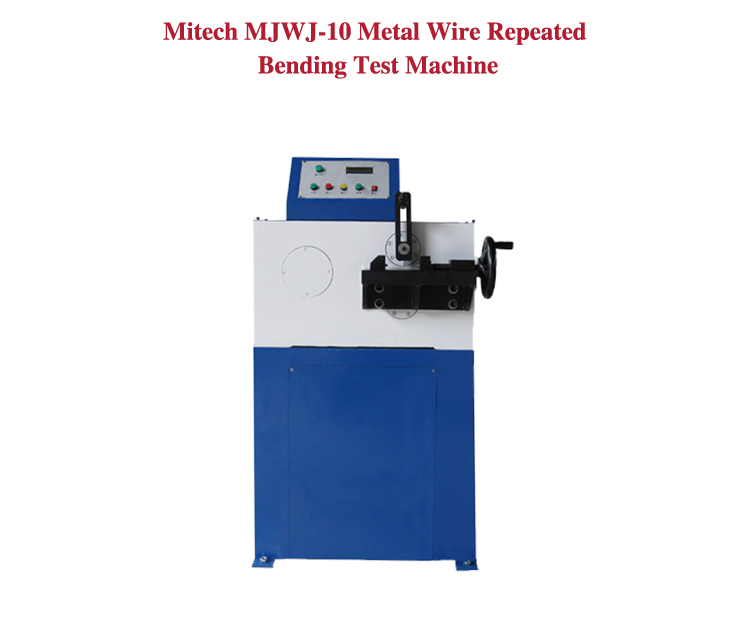

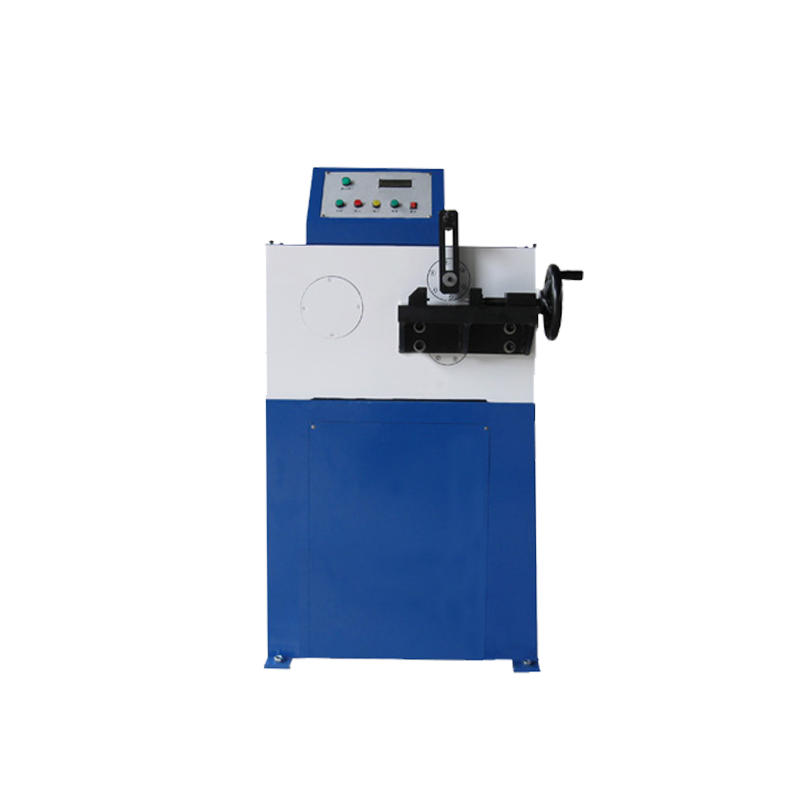

Mitech MJWJ-10 Metal Wire Repeated Bending Test Ma

Brand:

Mitech

Model:

Measuring range:

Resolution Accuracy:

Communication storage:

Working time:

Main unit weight:

Dimensions:

740*628*1120mm

Package dimensions:

Total weight:

200kg

Product

  • Overview
  • Graphic
  • Technical

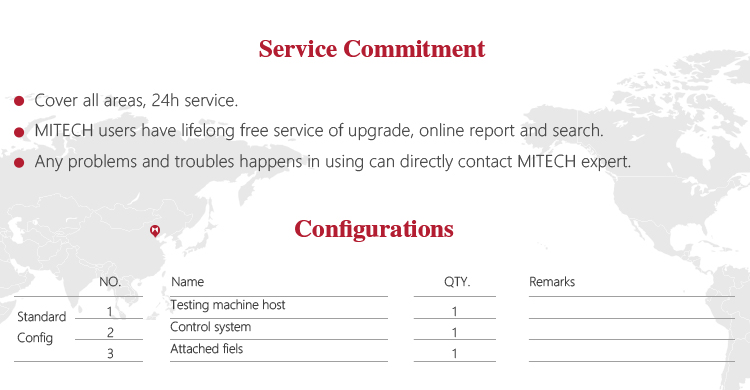

  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

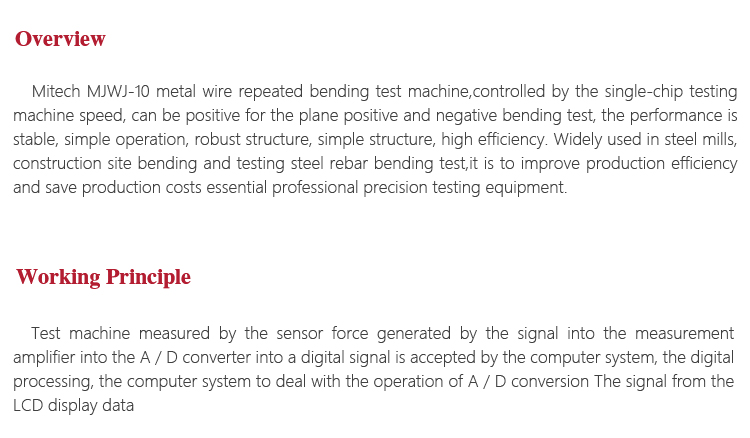

  • Product Overview

    Mitech MJWJ-10 metal wire repeated bending test machine,controlled by the single-chip testing machine speed, can be positive for the plane positive and negative bending test, the performance is stable, simple operation, robust structure, simple structure, high efficiency. Widely used in steel mills, construction site bending and testing steel rebar bending test,it is to improve production efficiency and save production costs essential professional precision testing equipment.

    Function & application

    Widely used in metal wire repeat bending test.

    Working Principle

    Test machine measured by the sensor force generated by the signal into the measurement amplifier into the A / D converter into a digital signal is accepted by the computer system, the digital processing, the computer system to deal with the operation of A / D conversion The signal from the LCD display data

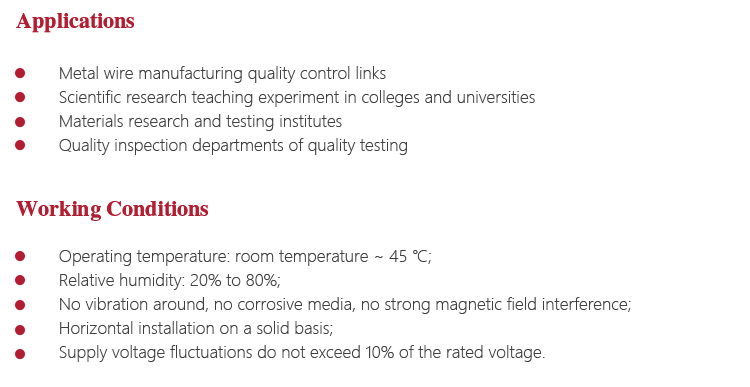

    Working Conditions

    <!--[if !supportLists]--><!--[endif]-->Operating temperature: room temperature ~ 45 ;

    <!--[if !supportLists]--><!--[endif]-->Relative humidity: 20% to 80%;

    <!--[if !supportLists]--><!--[endif]-->No vibration around, no corrosive media, no strong magnetic field interference;

    <!--[if !supportLists]--><!--[endif]-->Horizontal installation on a solid basis;

    <!--[if !supportLists]--><!--[endif]-->Supply voltage fluctuations do not exceed 10% of the rated voltage.

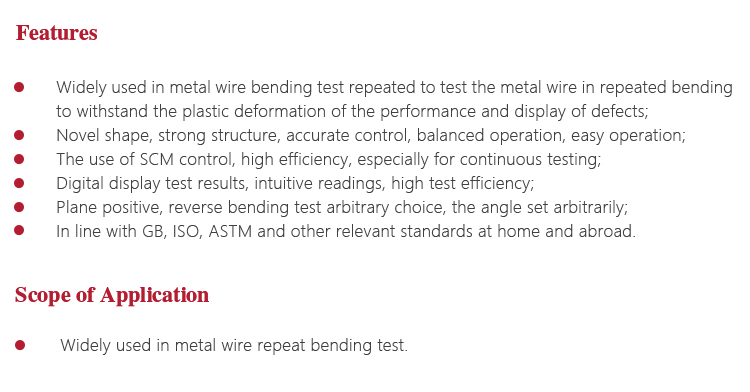

    Instrument Features

    l Widely used in metal wire bending test repeated to test the metal wire in repeated bending to withstand the plastic deformation of the performance and display of defects;

    l Novel shape, strong structure, accurate control, balanced operation, easy operation;

    l The use of SCM control, high efficiency, especially for continuous testing;

    l Digital display test results, intuitive readings, high test efficiency;

    l Plane positive, reverse bending test arbitrary choice, the angle set arbitrarily;

    l In line with GB, ISO, ASTM and other relevant standards at home and abroad.

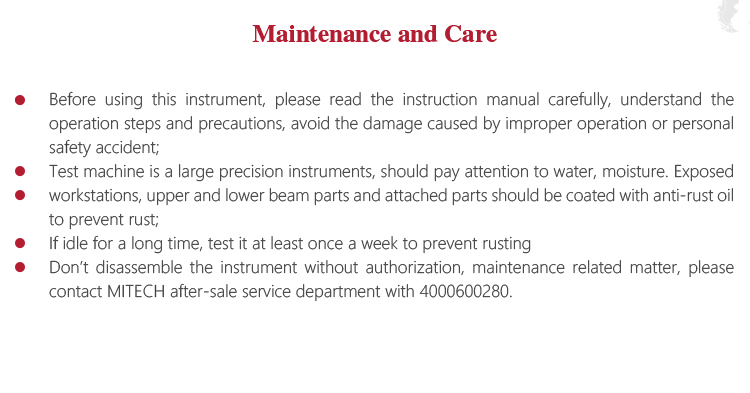

    Operating Method and Attentions

    l Before using this instrument, please read the instruction manual carefully, understand the operation steps and precautions, avoid the damage caused by improper operation or personal safety accident;

    l Test machine is a large precision instruments, should pay attention to water, moisture. Exposed workstations, upper and lower beam parts and attached parts should be coated with anti-rust oil to prevent rust;

    l If idle for a long time, test it at least once a week to prevent rusting

    l Don’t disassemble the instrument without authorization, maintenance related matter, please contact MITECH after-sale service department with 4000600280.

    Instrument Maintenance

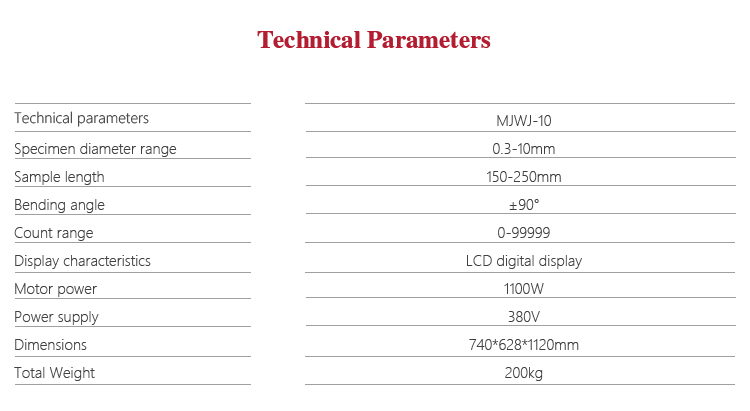

  • Specimen diameter range 0.3-10mm
    Sample length 150-250mm
    Bending angle ±90°
    Count range 0-99999
    Display characteristics LCD digital display
    Motor power 1100W
    Power supply 380V
    Dimensions 740*628*1120mm
    Total Weight 200kg
×
