Mitech MDW-TD 1000S Digital Series of Single - Arm

Brand:

Mitech

Model:

Measuring range:

Maximum testing force 1000N

Resolution Accuracy:

Better than ±1%of the indicated value (or±0.5%for special ch

Communication storage:

Working time:

Main unit weight:

Approximately110kg

Dimensions:

450*260*1470mm

Package dimensions:

Total weight:

Product

  • Overview
  • Graphic
  • Technical

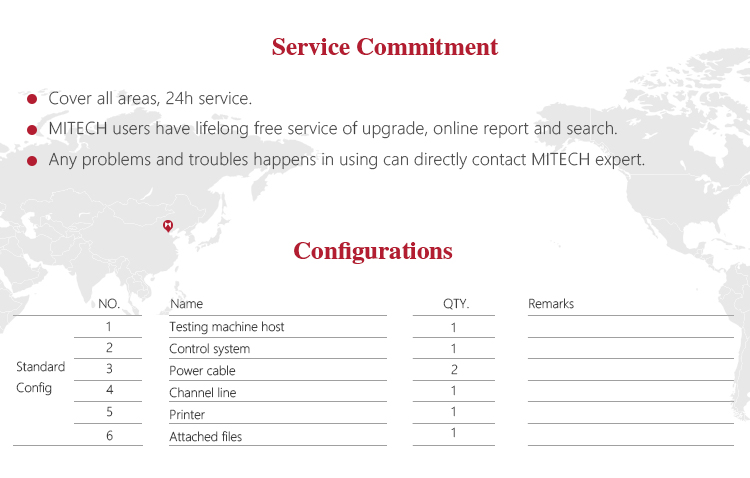

  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

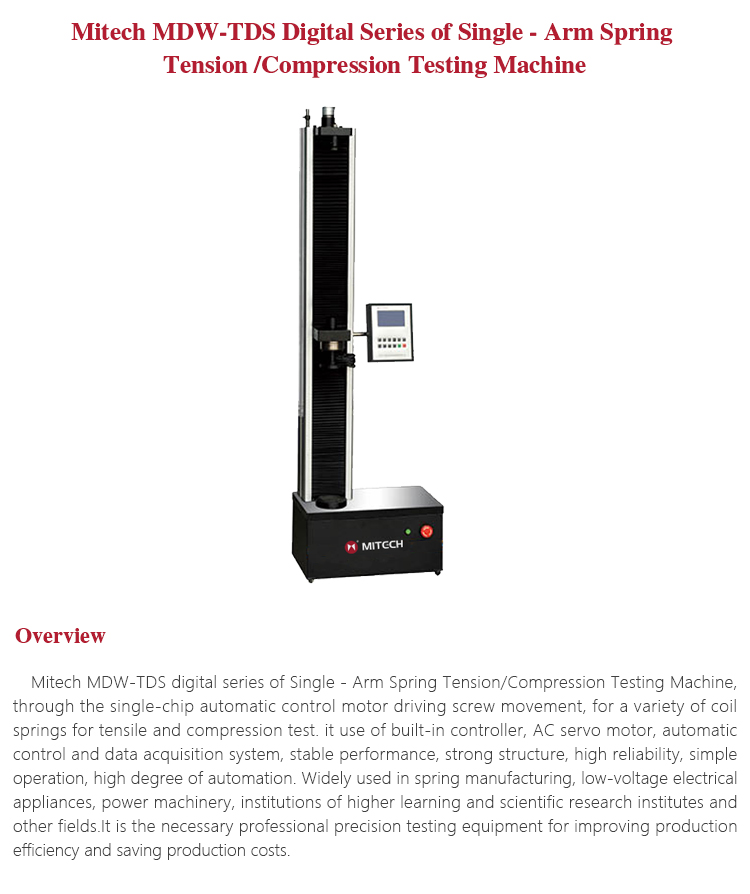

  • Product Overview

    Mitech MDW-TDS digital series of Single - Arm Spring Tension/Compression Testing Machine, through the single-chip automatic control motor driving screw movement, for a variety of coil springs for tensile and compression test. it use of built-in controller, AC servo motor, automatic control and data acquisition system, stable performance, strong structure, high reliability, simple operation, high degree of automation. Widely used in spring manufacturing, low-voltage electrical appliances, power machinery, institutions of higher learning and scientific research institutes and other fields.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

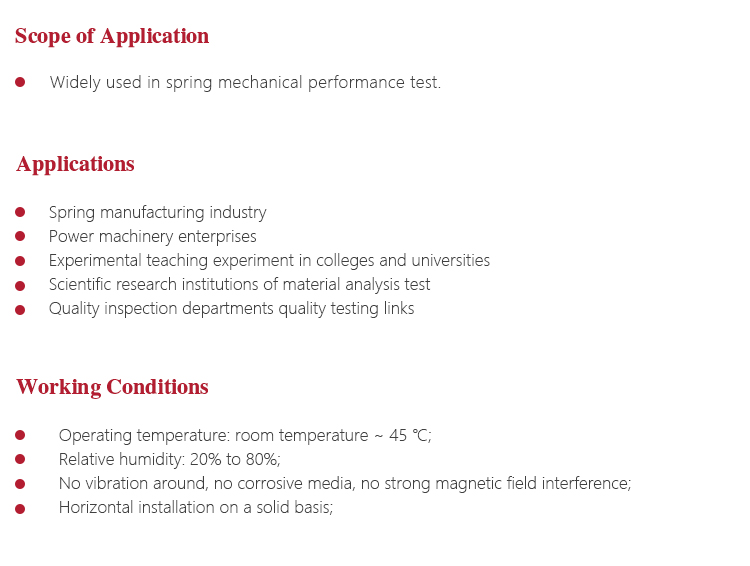

    Function & application

    Widely used in spring mechanical performance test.

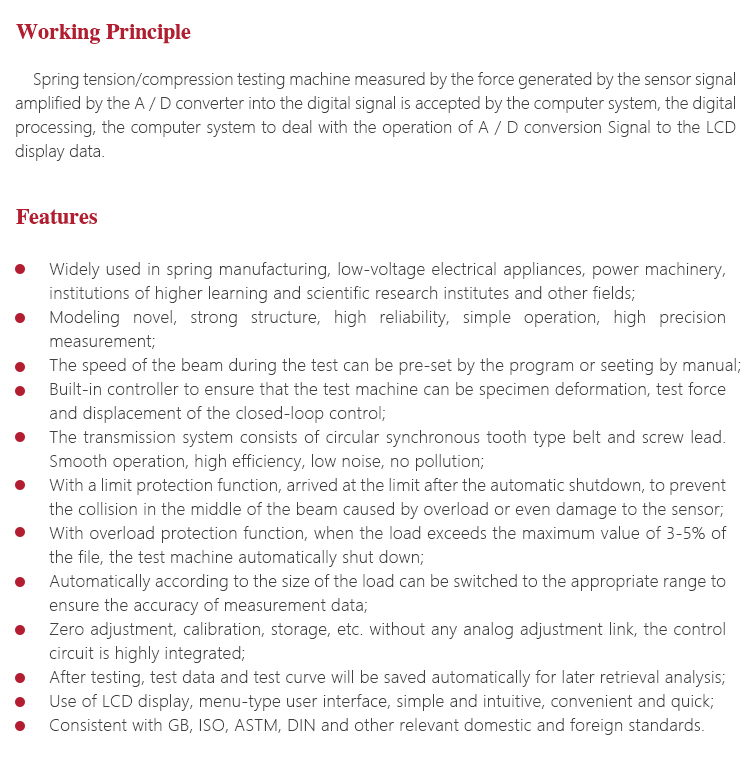

    Working Principle

    Spring tension/compression testing machine measured by the force generated by the sensor signal amplified by the A / D converter into the digital signal is accepted by the computer system, the digital processing, the computer system to deal with the operation of A / D conversion Signal to the LCD display data.

    Working Conditions

    Operating temperature: room temperature ~ 45 ;

    Relative humidity: 20% to 80%;

    No vibration around, no corrosive media, no strong magnetic field interference;

    Horizontal installation on a solid basis;

    Instrument Features

    Widely used in spring manufacturing, low-voltage electrical appliances, power machinery, institutions of higher learning and

    scientific research institutes and other fields;

    Modeling novel, strong structure, high reliability, simple operation, high precision measurement;

    The speed of the beam during the test can be pre-set by the program or seeting by manual;

    Built-in controller to ensure that the test machine can be specimen deformation, test force and displacement of the closed-

    loop control;

    The transmission system consists of circular synchronous tooth type belt and screw lead. Smooth operation, high efficiency,

    low noise, no pollution;

    With a limit protection function, arrived at the limit after the automatic shutdown, to prevent the collision in the middle of the

    beam caused by overload or even damage to the sensor;

    With overload protection function, when the load exceeds the maximum value of 3-5% of the file, the test machine

    automatically shut down;

    Automatically according to the size of the load can be switched to the appropriate range to ensure the accuracy of

    measurement data;

    Zero adjustment, calibration, storage, etc. without any analog adjustment link, the control circuit is highly integrated;

    After testing, test data and test curve will be saved automatically for later retrieval analysis;

    Use of LCD display, menu-type user interface, simple and intuitive, convenient and quick;

    Consistent with GB, ISO, ASTM, DIN and other relevant domestic and foreign standards.

    Operating Method and Attentions

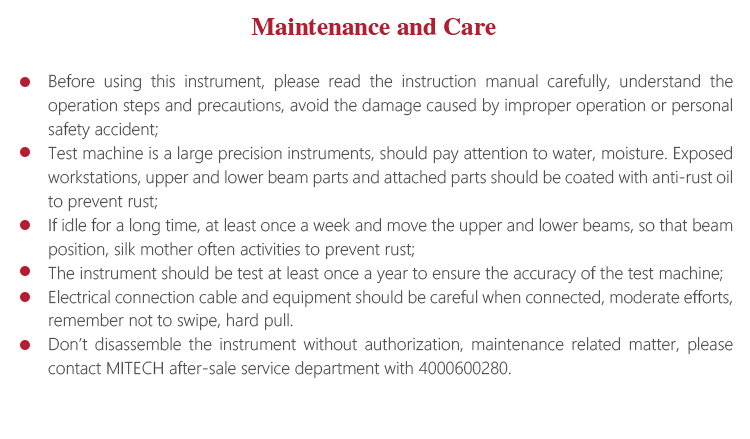

    Instrument Maintenance

    l Before using this instrument, please read the instruction manual carefully, understand the operation steps and precautions,

    avoid the damage caused by improper operation or personal safety accident;

    l Test machine is a large precision instruments, should pay attention to water, moisture. Exposed workstations, upper and

    lower beam parts and attached parts should be coated with anti-rust oil to prevent rust;

    l If idle for a long time, at least once a week and move the upper and lower beams, so that beam position, silk mother often

    activities to prevent rust;

    l The instrument should be test at least once a year to ensure the accuracy of the test machine;

    l Electrical connection cable and equipment should be careful when connected, moderate efforts, remember not to swipe,

    hard pull.

    Don’t disassemble the instrument without authorization, maintenance related matter, please contact MITECH after-sale service department with 4000600280.

  • Structural form Single-arm structure
    Maximum testing force 1000N
    Testing machine grade Level 1
    Operation mode Measuring and controlling instrument
    Force measuring range 2%-100% of the maximum testing force
    Relative error on indicated values of testing force Better than ±1%of the indicated value (or±0.5%for special choice)
    Deformation display error ≤±(50±0.5L)
    Test force resolution 0.01N
    Displacement resolution 0.01mm
    Speed governing range 0.01-500mm/min
    Stretch effective space 300mm
    Compression effective space 300mm
    Protection function Overload protection, limit protection
    Power supply 220V
    Dimension 450*260*1470mm
    Total Weight Approximately110kg
×
