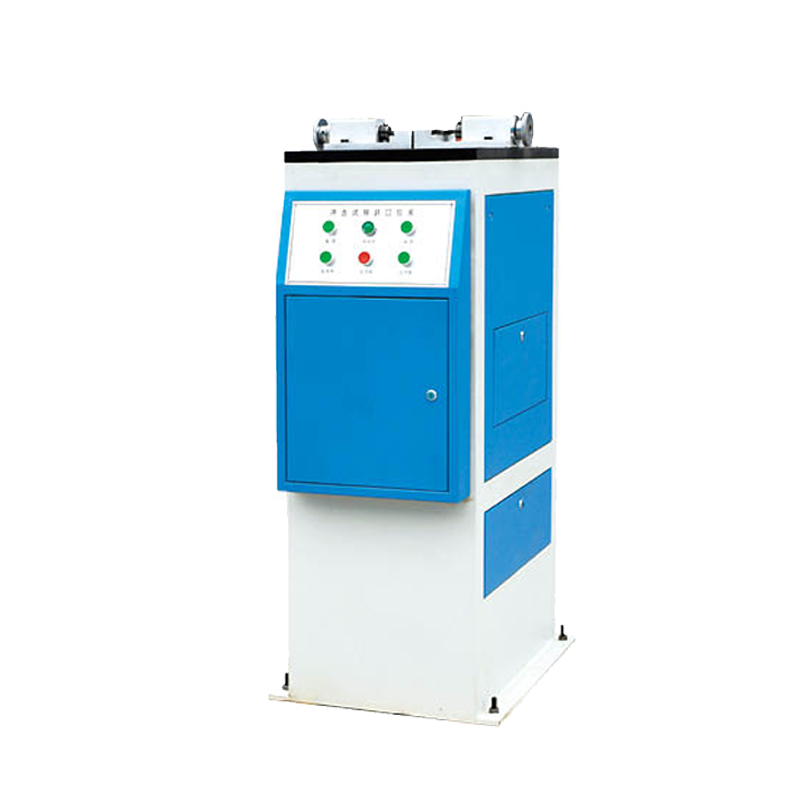

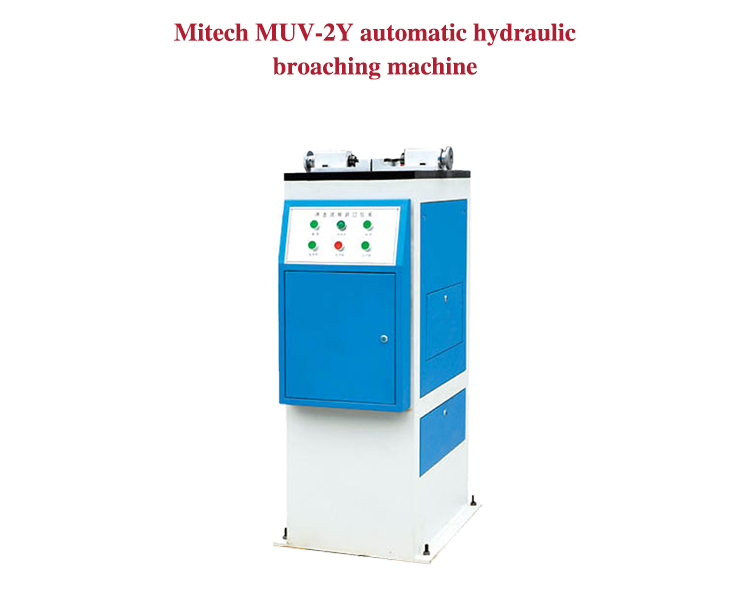

Mitech MUV-2Y automatic hydraulic broaching machin

Brand:

Mitech

Model:

Measuring range:

Resolution Accuracy:

Communication storage:

Working time:

Main unit weight:

200kg

Dimensions:

650*400*1200mm

Package dimensions:

60*60*140cm

Total weight:

260kg

Product

  • Overview
  • Graphic
  • Technical

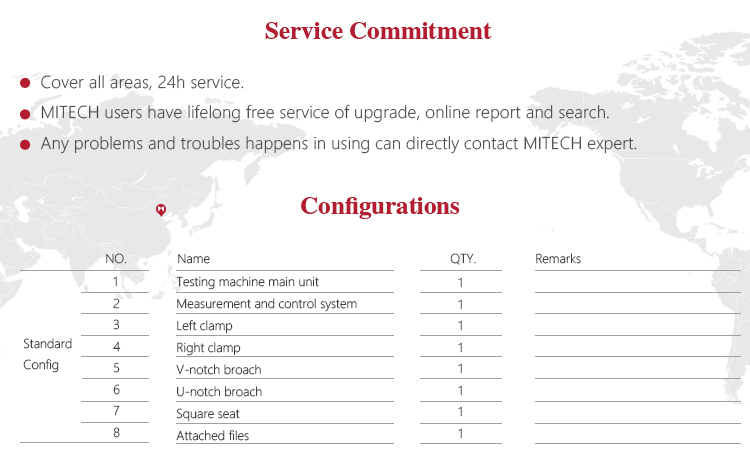

  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

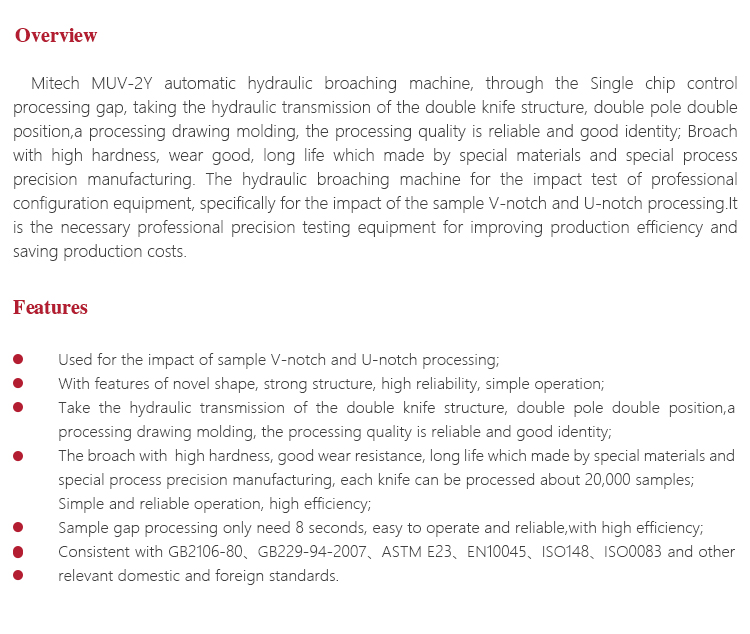

  • Product Overview

    Mitech MUV-2Y automatic hydraulic broaching machine, through the Single chip control processing gap, taking the hydraulic transmission of the double knife structure, double pole double position,a processing drawing molding, the processing quality is reliable and good identity; Broach with high hardness, wear good, long life which made by special materials and special process precision manufacturing. The hydraulic broaching machine for the impact test of professional configuration equipment,specifically for the impact of the sample V-notch and U-notch processing.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

    Function & application

    Professional for the impact of sample V-notch and U-notch processing

    Working Principle

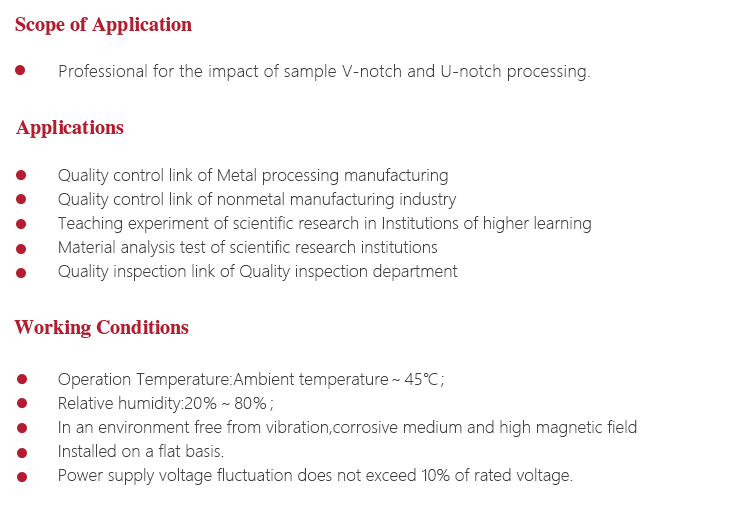

    Working Conditions

    l Operation Temperature:Ambient temperature45;

    l Relative humidity:20%~80;

    l In an environment free from vibration,corrosive medium and high magnetic field

    l Installed on a flat basis.

    l Power supply voltage fluctuation does not exceed 10% of rated voltage.

    Instrument Features

    l Used for the impact of sample V-notch and U-notch processing;

    l With features of novel shape, strong structure, high reliability, simple operation;

    l Take the hydraulic transmission of the double knife structure, double pole double position,a processing drawing molding,

    the processing quality is reliable and good identity;

    l The broach with  high hardness, good wear resistance, long life which made by special materials and special process precision

    manufacturing, each knife can be processed about 20,000 samples;

    l Simple and reliable operation, high efficiency;

    l Sample gap processing only need 8 seconds, easy to operate and reliable,with high efficiency;

    l Consistent with GB2106-80、GB229-94-2007ASTM E23、EN10045、ISO148ISO0083 and other relevant domestic and

    foreign standards.

    Operating Method and Attentions

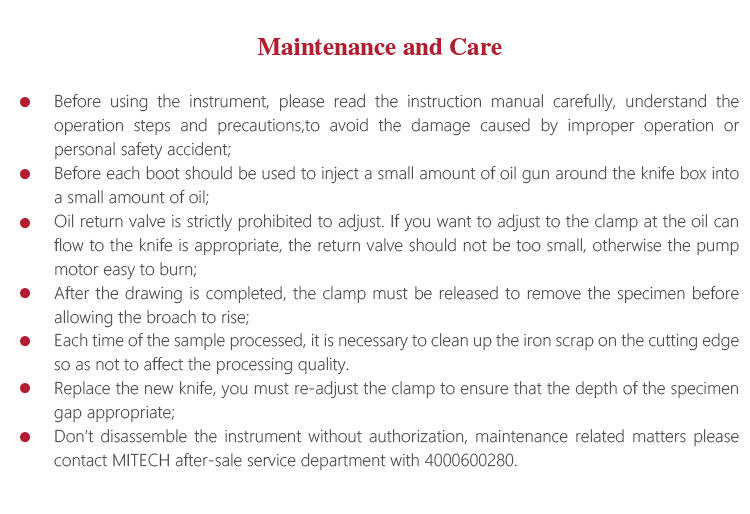

    Instrument Maintenance

    l Before using the instrument, please read the instruction manual carefully, understand the operation steps and precautions,to

    avoid the damage caused by improper operation or personal safety accident;

    l Before each boot should be used to inject a small amount of oil gun around the knife box into a small amount of oil;

    l Oil return valve is strictly prohibited to adjust. If you want to adjust to the clamp at the oil can flow to the knife is appropriate,

    the return valve should not be too small, otherwise the pump motor easy to burn;

    l After the drawing is completed, the clamp must be released to remove the specimen before allowing the broach to rise;

    l Each time of the sample processed, it is necessary to clean up the iron scrap on the cutting edge so as not to affect the

    processing quality.

    l Replace the new knife, you must re-adjust the clamp to ensure that the depth of the specimen gap appropriate;

    l Dont disassemble the instrument without authorization, maintenance related matters please contact MITECH after-sale

    service department with 4000600280.

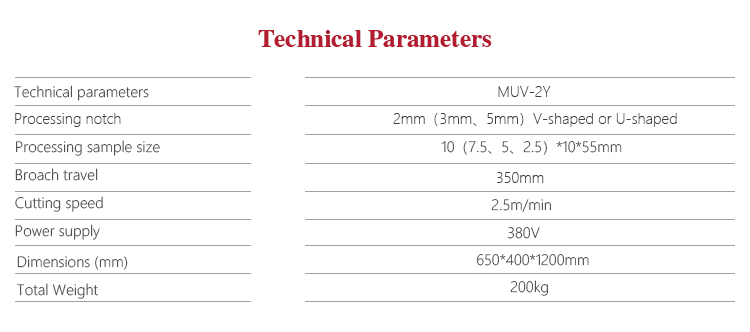

  • Processing gap 2mm(3mm、5mm))V-shaped or U-shaped
    Processing sample size 10(7.5、5、2.5)*10*55mm
    Broach travel 350mm
    Cutting speed 2.5m/min
    Power supply 380V
    Dimensions 650*400*1200mm
    Total Weight 200kg
×
